BOR Carbide Special Inserts
[Click For Download]| Type | Dimension (mm) | ||||
|---|---|---|---|---|---|

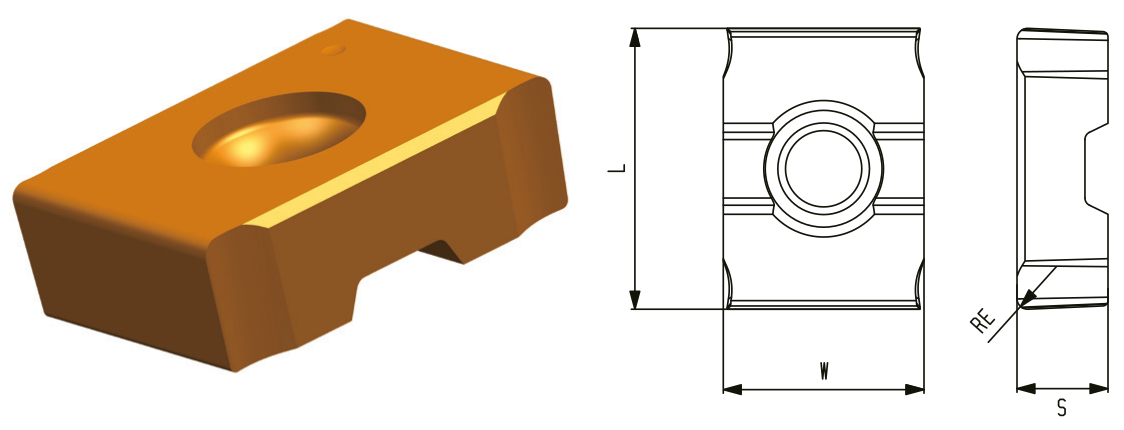

| L | W | S | RE | ||
|
LNHT024-R04 | 10.5 | 7.5 | 2.4 | 0.4 |
| LNHT029-R04 | 10.5 | 7.5 | 2.9 | 0.4 | |
| LNHT034-R04 | 10.5 | 7.5 | 3.4 | 0.4 | |
| LNHT039-R04 | 13.5 | 10 | 3.9 | 0.4 | |
| LNHT044-R04 | 13.5 | 10 | 4.4 | 0.4 | |
| LNHT054-R04 | 13.5 | 10 | 5.4 | 0.4 | |
| LNHT059-R04 | 15.5 | 12 | 5.9 | 0.4 | |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

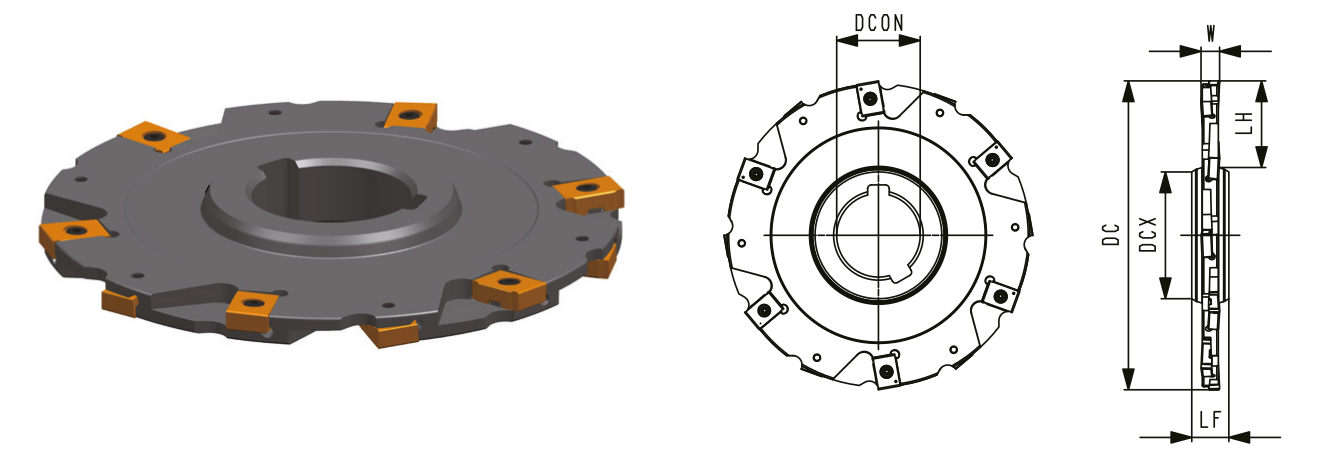

| Type | Number of Flutes | Dimension | Adaptable Inserts | Screw | Wrench | |||||
| DC | DCX | DCON | LF | LH | W | |||||
| SM01-X27-100-04-LN024 | 12 | 100 | 41 | 27 | 12 | 27 | 4 | LNHT024-R04 | SA02503X | T08P |
| SM01-X40-125-04-LN024 | 14 | 125 | 55 | 40 | 12 | 32 | 4 | LNHT024-R04 | SA02504X | T08P |
| SM01-X40-160-04-LN024 | 18 | 160 | 55 | 40 | 12 | 50 | 4 | LNHT029-R04 | SA02504X | T08P |
| SM01-X27-100-05-LN029 | 10 | 100 | 41 | 27 | 12 | 27 | 5 | LNHT034-R04 | SA02505X | T08P |
| SM01-X40-160-06-LN034 | 18 | 160 | 55 | 40 | 12 | 50 | 6 | LNHT039-R04 | SA0460X | T15P |
| SM01-X40-160-11-LN059 | 16 | 160 | 55 | 40 | 13 | 50 | 11 | LNHT054-R04 | SA0509 | T20P |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

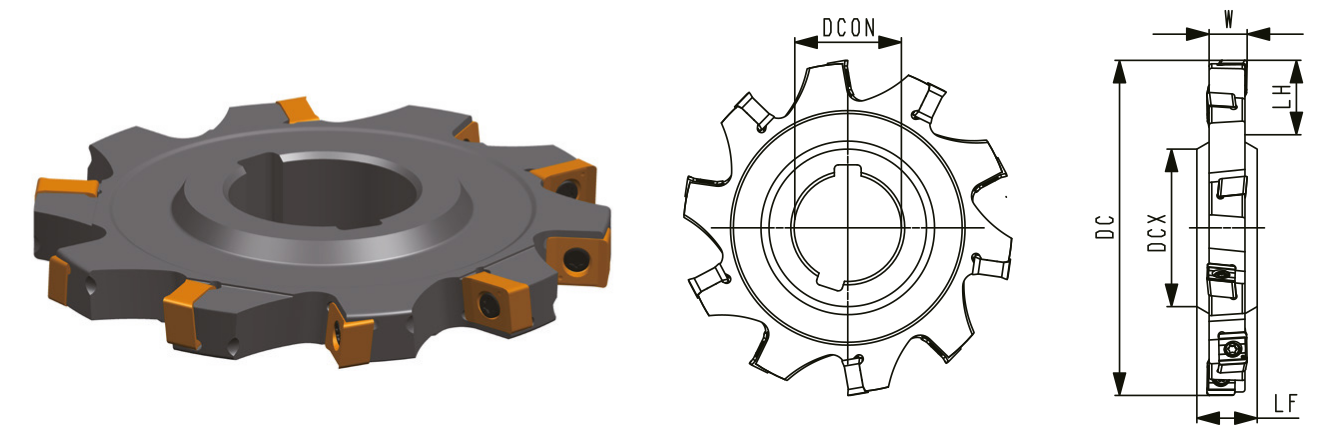

| Type | Number of Flutes | Dimension | Adaptable Inserts | Screw | Wrench | |||||
| DC | DCX | DCON | LH | W | ||||||
| SM02-X32-100-10-LN08 | 10 | 100 | 47 | 32 | 24 | 10, 12, 14 | LNHT08-R08 | SA03085 | TO9P | |
| SM02-X40-125-10-LN08 | 12 | 125 | 55 | 40 | 33 | 10, 12, 14 | ||||
| SMO2-X40-160-10-LN08 | 14 | 160 | 55 | 40 | 50 | 10, 12, 14 | ||||
| SMO2-X32-100-16-LN10 | 10 | 100 | 47 | 32 | 24 | 16, 18 | LNHT10-R08 | SA04011 | T15P | |
| SMO2-X40-125-16-LN10 | 12 | 125 | 55 | 40 | 33 | 16, 18 | ||||
| SMO2-X40-160-16-LN10 | 14 | 160 | 55 | 40 | 50 | 16, 18 | ||||
| SMO2-X32-100-20-LN12 | 10 | 100 | 47 | 32 | 24 | 20, 22 | LNHT12-R08 | SA04011 | T15P | |
| SMO2-X40-125-20-LN12 | 12 | 125 | 55 | 40 | 33 | 20, 22 | ||||
| SM02-X40-160-20-LN12 | 14 | 160 | 55 | 40 | 50 | 20, 22 | ||||
